Ebco Roll Top Pro Vertical Rolling Shutter with Overlay Rails & Cover Profile
Ebco Roll Top Pro Vertical Rolling Shutter with Overlay Rails & Cover Profile
Couldn't load pickup availability
Product Highlights
- Manufacturer: Ebco
- Model: Roll Top Pro - Vertical Roll-Up Door System
- Series: Roll Top Pro
- Orientation: Vertical
- Height: 1300mm
- Width Options: 450mm, 600mm, and 900mm
- Finish Options: SL (Silver), SF (Special Finish), FG (Frozen Glass finish i.e., frosted translucent PVC material), BL (Black), GW (Glossy White), AT (Anthracite), MC (Mocha)
- Included: Overlay rails and cover profile - complete set
- Application: Modular kitchen cabinets, appliance garages, tall pantry cabinets
- Warranty: Ebco manufacturer quality assurance
Product Description

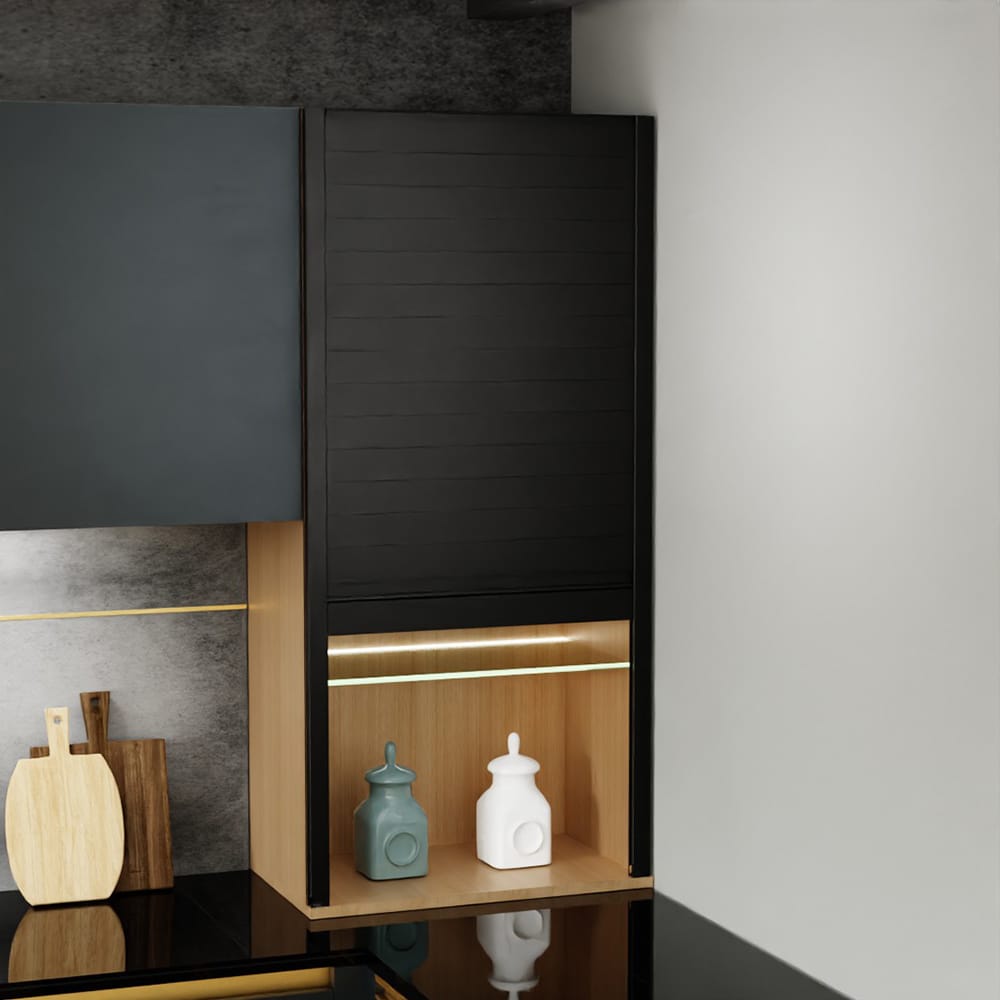

Ebco Roll Top Pro - Vertical is a vertical roll-up door system for modular kitchen cabinets and appliance garages - the roll-up mechanism replaces conventional swing doors, allowing the door panel to roll upward into the cabinet top rather than swinging outward into the kitchen work area. This eliminates the swing clearance that a hinged door requires in front of the cabinet, making the Roll Top Pro the correct hardware choice for appliance garages, tall pantry cabinets, and storage units positioned in locations where an outward-swinging door would conflict with adjacent countertop edges, open drawers, or kitchen traffic flow. Available in 450mm, 600mm, and 900mm widths at a fixed height of 1300mm, and in seven premium finishes - the complete package includes overlay rails and cover profile for a professional, finished installation.
The seven finish options cover the full range of modern modular kitchen colour palettes: SL (Silver) and AT (Anthracite) for metallic contemporary kitchens; SF (Special Finish) for specialist aesthetic requirements; FG (Frozen Glass) - which features high-quality PVC slats with a translucent, frosted glass-like finish that allows diffused light to pass through the door while concealing cabinet contents - for premium interiors where a glass-look door is the design intent without the weight or fragility of actual glass; BL (Black) for dark, dramatic kitchen schemes; GW (Glossy White) for all-white or Scandinavian-style kitchens; and MC (Mocha) for warm-toned wood and earth-colour kitchen interiors. The overlay rails and cover profile included in the kit conceal the roll mechanism for a seamless, flush appearance when the door is in the closed position.
Key Features
- Vertical Roll-Up Mechanism - No Swing Clearance Required: Door rolls upward into the cabinet top rather than swinging outward - eliminates the clearance zone in front of the cabinet that a hinged door requires, freeing up kitchen work area directly in front of the storage unit.
- Seven Premium Finish Options: SL (Silver), SF (Special Finish), FG (Frozen Glass finish i.e., frosted translucent PVC material), BL (Black), GW (Glossy White), AT (Anthracite), and MC (Mocha) - covers every major modular kitchen colour palette from metallic contemporary to warm-toned traditional.
- Frozen Glass (FG) - Frosted Translucent PVC Slats: The FG variant uses high-quality PVC slats with a translucent, frosted glass-like finish - diffuses light through the door surface while concealing cabinet contents, delivering a premium glass aesthetic without the weight, fragility, or cost of real glass panels.
- Three Width Options - 450mm, 600mm, 900mm: Sized to match standard modular kitchen cabinet widths - 450mm for narrow appliance garages and filler units, 600mm for standard cabinet bays, and 900mm for wide pantry cabinets and large appliance storage zones.
- Complete System - Overlay Rails and Cover Profile Included: The kit includes all hardware required for a finished installation - overlay rails for smooth, guided door travel and a cover profile that conceals the roll mechanism for a seamless, professional appearance when the door is closed.
Technical Specifications
Technical Specifications (Quick Reference)
| Specification | Details |
|---|---|
| Brand | Ebco |
| Series | Roll Top Pro |
| Orientation | Vertical |
| Height | 1300mm |
| Width Options | 450mm, 600mm, 900mm |
| Finish Options | SL (Silver), SF (Special Finish), FG (Frozen Glass finish i.e., frosted translucent PVC material), BL (Black), GW (Glossy White), AT (Anthracite), MC (Mocha) |
| Included | Overlay rails, cover profile - complete set |
| Warranty | Ebco manufacturer quality assurance |
Finish Selection Guide
| Code | Finish | Best For |
|---|---|---|
| SL | Silver | Contemporary metallic kitchens - coordinates with chrome, stainless, and brushed silver hardware |
| SF | Special Finish | Premium and bespoke kitchen designs requiring a distinctive finish |
| FG | Frozen Glass (frosted translucent PVC material) | Premium interiors requiring a glass-look door - diffuses light through the slats while concealing cabinet contents, without the weight or fragility of real glass |
| BL | Black | Dark, contemporary, and dramatic kitchen schemes - coordinates with black hardware and matt black cabinetry |
| GW | Glossy White | All-white, Scandinavian, and minimalist kitchens where the roll top door blends seamlessly with white cabinetry |
| AT | Anthracite | Modern dark-grey kitchen schemes - coordinates with anthracite hardware, handles, and dark-toned cabinetry |
| MC | Mocha | Warm-toned kitchens with wood veneer, earth-colour laminate, or walnut-toned cabinetry |
Width Selection Guide
| Width | Best For |
|---|---|
| 450mm | Narrow appliance garages, filler cabinets, and compact storage units where a single small appliance (toaster, kettle) needs to be concealed |
| 600mm | Standard modular kitchen cabinet bays - the most common width for a primary appliance garage housing a coffee machine, microwave, or mixer |
| 900mm | Wide pantry cabinets, large appliance garages housing multiple appliances, and tall storage units in commercial or large residential kitchens |
Installation Guidelines
Step-by-Step Installation
- Select size and finish: Choose the width (450mm, 600mm, or 900mm) and finish (SL, SF, FG, BL, GW, AT, or MC) to match your cabinet dimension and kitchen design. Confirm the cabinet opening accommodates 1300mm height and the selected width with correct clearances before ordering.
- Prepare the cabinet opening: Ensure the internal cabinet height is sufficient for the 1300mm door travel path and the roll mechanism housing at the top - confirm internal clearances from the Ebco installation guide for your specific cabinet construction.
- Install overlay rails: Mount the included overlay rails to the cabinet side panels following the Ebco installation specification - rails must be level and parallel for smooth, even door travel.
- Attach cover profile: Install the cover profile at the top of the cabinet opening to conceal the roll mechanism housing and create a clean finished appearance when the door is in the closed position.
- Mount the roll-up door: Install the vertical roll-up door slat assembly into the rail guides and engage the roll mechanism as per the Ebco product installation guide.
- Test and adjust: Roll the door up and down through several full cycles - verify smooth travel without binding, and make any necessary rail alignment or tension adjustments before completing the installation.
Recommended Applications
Where the Ebco Roll Top Pro - Vertical fits best
- Appliance Garages: Conceals coffee makers, toasters, kettles, mixers, and small kitchen appliances behind a roll-up door - appliances remain plugged in and accessible at the roll of the door without occupying permanent counter space.
- Tall Pantry and Storage Cabinets: The 1300mm height suits tall pantry and utility cabinet applications where a full-height door provides access to the complete vertical storage zone in a single smooth motion.
- Compact Kitchens - Space-Saving Door Solution: Eliminates the swing clearance required by hinged cabinet doors - ideal for galley kitchens, narrow kitchen layouts, and positions where an outward-opening door would conflict with work counters, adjacent appliances, or kitchen traffic flow.
- Premium Modular Kitchen Fitouts: The seven finish options - including the FG Frozen Glass frosted translucent PVC variant - suit high-specification residential kitchens where the roll top door is a visible design feature rather than a utilitarian fitting.
- Commercial and Hospitality Kitchens: Office pantry units, hotel room kitchenettes, and hospitality service areas where clean, professional storage with easy roll-up access and a minimal visual footprint are required.
Why Buy from HomeRun?
- Authentic Ebco Hardware: Verified genuine products
- Complete System Included: Overlay rails and cover profile for professional installation
- Bangalore Fulfilment: Quick local availability
FAQs
1) What is the Frozen Glass (FG) finish, and how is it different from the other finishes?
The FG (Frozen Glass) variant uses high-quality PVC slats with a translucent, frosted glass-like finish - the slats allow diffused light to pass through the door surface while concealing the cabinet contents behind a softly opaque screen. This delivers the premium visual character of a glass-front door - depth, translucency, and a light, airy appearance - without the weight, fragility, or installation complexity of real glass panels. It is the recommended finish for premium and luxury kitchen interiors where a glass-look roll top door is part of the design specification. The other finishes (SL, SF, BL, GW, AT, MC) are opaque and do not transmit light.
2) How does a vertical roll-up door save space compared to a standard hinged cabinet door?
A conventional hinged cabinet door requires a clear swing zone in front of the cabinet equal to the full door width - in a kitchen, this means the cabinet cannot be opened if someone is standing at the adjacent counter, or if a drawer below is open. The Roll Top Pro rolls vertically upward into the cabinet top, requiring zero clearance in front of the cabinet - the full work area directly in front of the storage unit remains usable even while the door is open. This is particularly valuable in appliance garages where the user needs to stand directly in front of the cabinet to operate the concealed appliance.
3) Which width should I choose for my cabinet?
Match the width to your cabinet internal opening: 450mm for narrow appliance garages and filler units housing a single small appliance; 600mm for standard modular kitchen cabinet bays - the most common width for primary appliance garages; 900mm for wide pantry cabinets, large appliance storage zones housing multiple items, or tall utility storage units. Measure the internal cabinet opening width - not the external carcass width - before selecting the correct variant.
4) Are the overlay rails and cover profile included, or do I need to order them separately?
Yes - the overlay rails and cover profile are included in the complete kit. This is a full system package - everything required for a professional installation is supplied together. The cabinet carcass itself is not included and must be built or already present to the correct internal dimensions (1300mm height and the selected width) before the Roll Top Pro kit can be installed.
5) Can the Roll Top Pro be retrofitted into an existing cabinet?
Yes - the Roll Top Pro can be retrofitted into an existing cabinet that meets the size requirements: 1300mm internal height and the selected internal width (450mm, 600mm, or 900mm) with adequate side panel depth for the overlay rail mounting. Any existing hinged door and hardware must be removed before installation. Professional installation is recommended - correct rail alignment is critical for smooth door operation, and an incorrectly installed roll top mechanism can bind, jump the rails, or produce excessive noise during operation.
